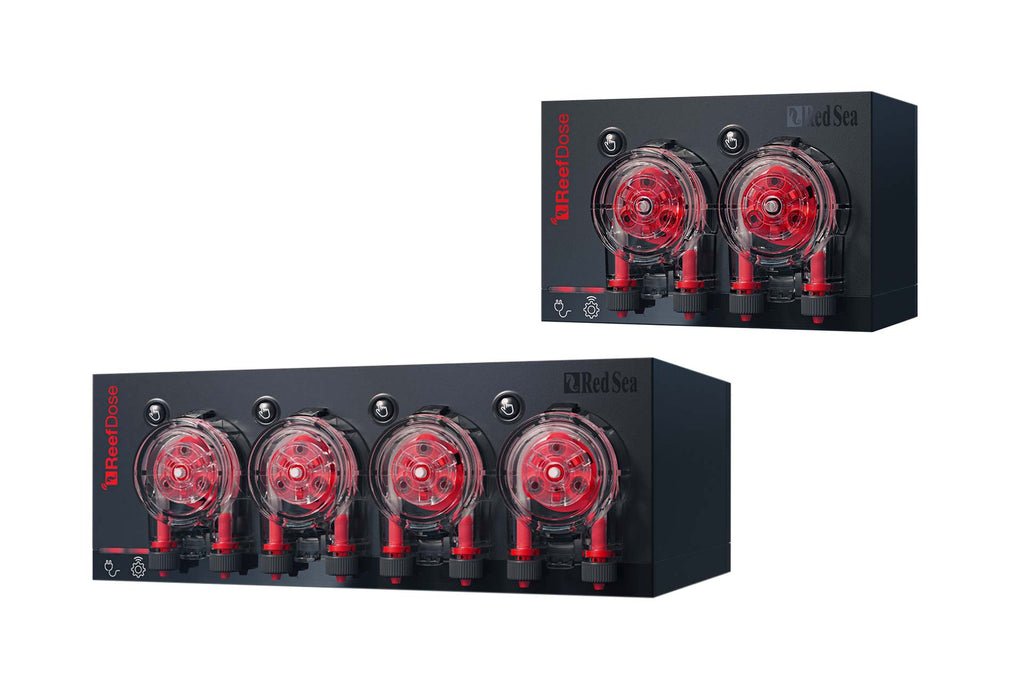

RED SEA ReefDose

Accurate. Smart. Intuitive

The ReefDose is designed and built specifically for the daily supplementing of reef aquariums, with bespoke single-drop accuracy dosing heads together and an advanced controller that provides a full suite of features.
The ReefDose is a patented device, and part of Red Sea’s ReefBeat smart ecosystem, seamlessly integrating with all other ReefBeat devices.

With programming through the ReefBeat App, ReefDose offers multiple options for fully automated, easy-set dosing, or a simple schedule of individually planned doses.

In addition to the regular flow rate, you can select the “Whisper” mode for almost silent operation, or “Turbo” mode if you want to get the dosing done as quickly as possible.

The ReefDose is part of Red Sea’s ReefBeat smart ecosystem, seamlessly integrating with all other ReefBeat devices.

Features

• Single drop accuracy dosing heads with a direct-drive planetary gear-motor, provides an accuracy of ± 0.05ml or an average deviation of 0.5% (over 10ml).
• 4 easy-set, smart dosing options for each head, that are automatically combined into one coordinated schedule for the complete device.
• Easy assembly click-on/off dosing heads (no tools or alignment required).
• Automatic delay between the heads to prevent chemical interaction between supplements.
• Daily dose per head of 0.2ml up to 1000ml in increments of 0.1ml.
• On-demand manual dosing.
• Secured connectors for flexible tubing: OD 5mm – ID 3mm.
• 3 dosing flow rates: Whisper 15ml/min, Regular 30ml/min, Turbo 45 ml/min.
• Motor life expectancy of 10 years – based on 250ml/day/head.

The Direct drive planetary gear motor heads are precise down to a single drop!

Mounting and Installation

Easy assembly click on/off dosing heads (no tool or alignment) required.
