$159.00

Out of Stock

  • FREE Store Pick Up

RAI-00006

Category:

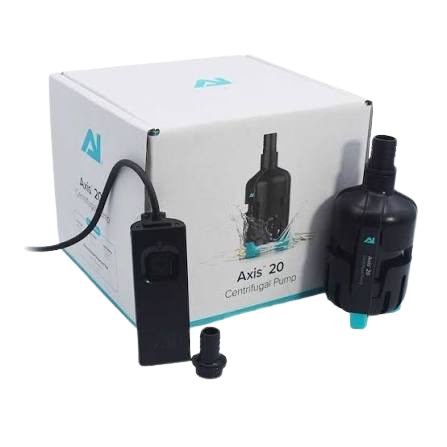

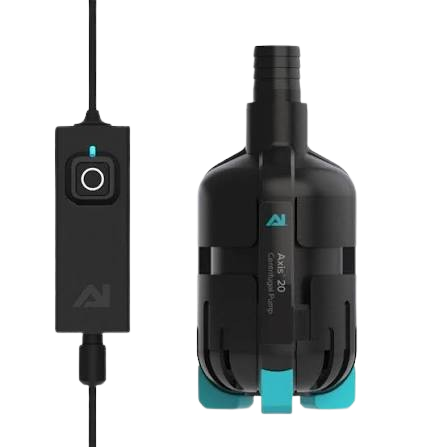

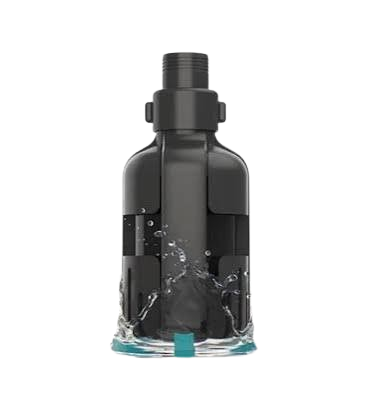

The AquaIllumination (AI) Axis 20 is an ultra-compact, controllable DC centrifugal return pump designed specifically for small all-in-one (AIO) and nano aquariums. Its distinct vertical form factor allows it to draw water from the bottom and pump it out the top, making it perfect for tight filtration compartments.
Key Technical Specifications
  • Max Flow Rate: ~185 GPH (700 LPH)
  • Max Head Height: ~5 feet (1.5 meters)
  • Power Consumption: Up to 12W maximum (variable DC motor)
  • Tank Suitability: Recommended for aquariums up to 15 gallons (56 litres)
  • Dimensions: 2.125" (54mm) Diameter x 5.5" Tall
  • Output Nozzles: Includes 0.5" (12mm) and 0.625" (16mm) barbed fittings
Standout Features
  • Smart Wireless Control: Features native Bluetooth control allowing you to program custom flow schedules through the myAI® or Mobius mobile apps. It can also be integrated into Neptune Systems Apex Fusion using an MXM module.
  • Anti-Back-Siphon Calibration: You can calibrate the pump so that during "Feed Mode," it safely drops to an idle speed. This prevents water from siphoning backward into your filtration chamber and stops air bubbles when normal operation resumes.
  • Coordinated Pump Modes: Wirelessly syncs with other AI devices (like Nero powerheads or Blade lights) so that pressing a physical button on one controller triggers Feed or Maintenance modes across all connected equipment.
  • Quiet Operation: The energy-efficient DC motor is paired with vibration-dampening rubber feet to keep operation nearly completely silent.

Free pick up at 108 Owen Road 218915 only
