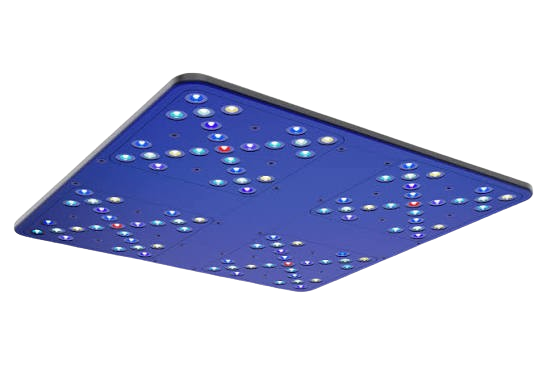

ATI Straton X

ATI Straton X – Premium Full-Spectrum Reef LED

The ATI Straton X is a high-performance, ultra-slim LED lighting system designed for marine and reef aquariums. Combining high PAR output, broad and even light distribution, silent fanless operation and full app control, the Straton X is built to provide excellent lighting for both demanding SPS corals and LPS/mixed reef systems.

Manufactured in Germany, the Straton X features 100 high-power LEDs with individual reflectors and 7 LED channels to deliver a balanced full-spectrum reef lighting solution.

Key Features

• 150W maximum LED power
• Ultra-slim 9mm design
• Completely fanless and silent
• 100 high-power LEDs
• 100 individual reflectors for even light distribution
• 7 individually controllable LED channels
• Full-spectrum reef lighting
• Built-in LIVE PAR monitoring
• Built-in LIVE energy monitoring
• Controlled through the ATI Reef Pilot App
• Made in Germany

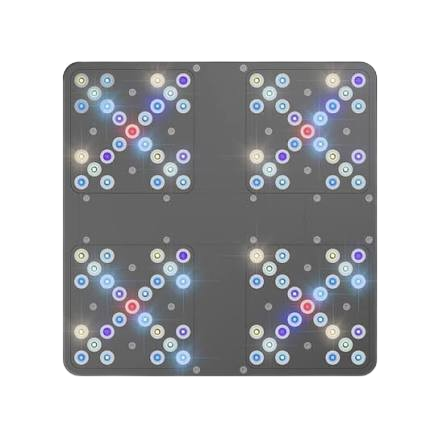

LED Configuration

• 8 × UV 405nm
• 8 × Violet 420nm
• 20 × Royal Blue 450nm
• 28 × Blue 470nm
• 16 × Cyan White
• 16 × Clean White
• 4 × Red 625nm

Total: 100 LEDs / 7 channels

PAR & Coverage

At a mounting distance of 60cm from the light:

SPS

• Minimum 200 PAR
• Coverage up to approximately 85cm diameter

LPS / Mixed Reef

• Minimum 100 PAR
• Coverage up to approximately 100cm diameter

Additional performance:

• Average PAR: 390 PAR across a 60 × 60cm area
• Maximum PAR: 1,800 PAR at 20cm
• Efficiency: 2.6 PAR/W

Recommended Aquarium Coverage

The Straton X is particularly suitable for:

• SPS reef aquariums
• LPS aquariums
• Mixed reef aquariums
• Coral propagation systems

For planning purposes, one Straton X provides approximately 85cm diameter of SPS-level (200 PAR) coverage and 100cm diameter of LPS-level (100 PAR) coverage, when measured at 60cm from the light. Actual aquarium requirements will vary depending on tank depth, mounting height, coral placement and desired PAR levels.

Product Specifications

• Dimensions: 364 × 364 × 9mm
• Weight: 2.5kg
• Maximum LED power: 150W
• Power supply input: 100–240V AC
• Power supply maximum: 160W
• Material: Aluminium
• Colour: Galaxy Grey
• Design: Ultra-thin, fanless
• Recommended mounting height: 25–30cm above the water surface

ATI Reef Pilot App

Control and monitor your Straton X directly through the ATI Reef Pilot App.

Features include:

• Individual spectrum and intensity control
• Custom lighting schedules
• Sunrise and sunset transitions
• LIVE PAR display
• LIVE energy consumption monitoring
• Individual or grouped light control

What's Included

• 1 × ATI Straton X LED Light
• 1 × Power Supply

Mounting arm and hanging kit are sold separately.
