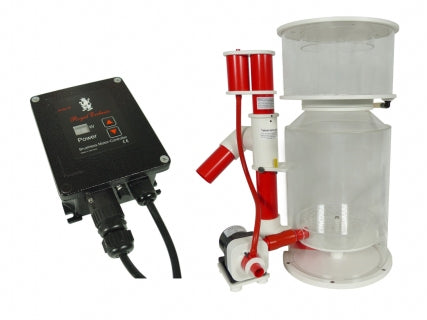

ROYAL EXCLUSIV Bubble King® DeLuxe 300 internal with RD3 Speedy 60W

Regular price $4,509.00

In Stock

  • FREE Delivery over $100

RRE-00021

for aquariums from 1.200 liter - 3.000 liter

hard facts  Bubble King® 300 DeLuxe internal:
with 10V connection
2.500 l/h Air - 6.000 l/h Water = 1 Red Dragon® 3 Mini Speedy 2.500 pump
with ozon-connection, adjustable from 20W up to 60W
Base plate: Ø 32 cm x 50 cm / height ~ 68 cm

Technical data Bubble King ® 300 DeLuxe internal:
Water level: ~ 180 mm up to ~ 270 mm
Weight skimmer: 16 kg inclusiv pump
Dimension skimmer: 350 mm wide / 510 mm length / ~ 675 mm height

pdf_icon  Data_sheet.pdf   pdf_icon Spare_parts_and_accessories.pdf

pdf_icon  Operating_and_maintenance_manual.pdf


Red Dragon® 3 Mini Speedy Pumpe 60 Watt / 2500 l/h
Technical data  Red Dragon® 3 Mini Speedy pump 60 Watt / 2500 l/h air intake:

max. 60 Watt/h, adjustable 20-60 Watt
speed adjustable Brushless DC pump
Intake side: Nozzle with ozone & air plug
Pressure side:    Ø 32 mm (1 1/4′′)
Delivery rate:      max. ~ 2.500 l/h Air inlet
                           max. ~ 6.000 l/h Water inlet
Operating voltage: 230 Volt 50 Hz  (also in 110V/60Hz available)
Protection class pump: IP 68  control unit: IP 66
Weight pump: 3,75 kg
Height of intake side: center 60 mm
Dimension pump:
100 mm wide / 230 mm length / ~ 140 mm height
Dimension control unit:
120 mm wide / 160 mm length / ~ 65 mm height

pdf_icon  Data_sheet_and_spare_parts.pdf pdf_icon  Operating_and_maintenance_manual.pdf

  • Saltwater resistant M6 grade 2 titanium screws
  • Saltwater resistant parabolic rubber feet for acoustic decoupling
  • Extreme low noise brushless DC skimmer-pump with grouted power electronics
  • High efficient technology "Made in Germany"
  • compact dimensions
  • High performance ceramics bearings and hollow shaft for bypass purging in the rotor housing
  • Only saltwater resistant pump with titanium rotor, titanium stator and shrivelled bearings
  • Easy usage and maintenance. Low risk of calcification due to polished titanium parts and compulsory purgeing
  • Heavy and massive craftsmanship against vibrations and oscillation
  • CE conformity, developed and built according to VDE guidelines

/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
The connection of a controller/computer is prepared in each pump!
Prepared for connection to an aquarium computer (E.g. GHL) via a 0-10V interface.
The additional controller, for the connection to the computer, costs 159¤ (incl. all connection cables and main adaptor)

Tested so far folowing these computers:
GHL ProfiLux 3.1 and from Neptune Systems the Apex Aqua Controller.

Compatible with following brands:
ghl logoneptune systems logoreef ai logo

https://www.aquariumcomputer.com/
https://www.neptunesystems.com/
https://www.reefai.com/

//////////////////////////////////////////////////////////////////////////////
Functioning of the electronics:
Once a voltage > 0,5V to the 10V interface is, the interface adapter takes over controlling and the system and lock(disable) the buttons on the controller. Voltage will be < 0,5V normal controller operation and the buttons are again released. So can the interface adapter stay connected without performing a function.

If the Aquarium(tank)-computer voltage under 0,5V the 0-10V interface is shut down and the pump can be operated manually. From 0,5V, the interface will take over control of the scheme. In the area of 0,5V-0,8V the pump is switched off. 1V starts the pump at the lowest level (20W) and run. At an increase of 0,5V will increase the level, also. So 1V = 20W 1,5V = 25W 2V = 30W….. 5,0V = 60W.

At a higher input voltage remains the Speedycontroller to the maximum setting are available and no longer increases. The interface adapter behaves as if the corresponding would push the button.
//////////////////////////////////////////////////////////////////////////////////////////////////////////////////

pdf_icon  Data_sheet.pdf   pdf_icon Spare_parts_and_accessories.pdf
